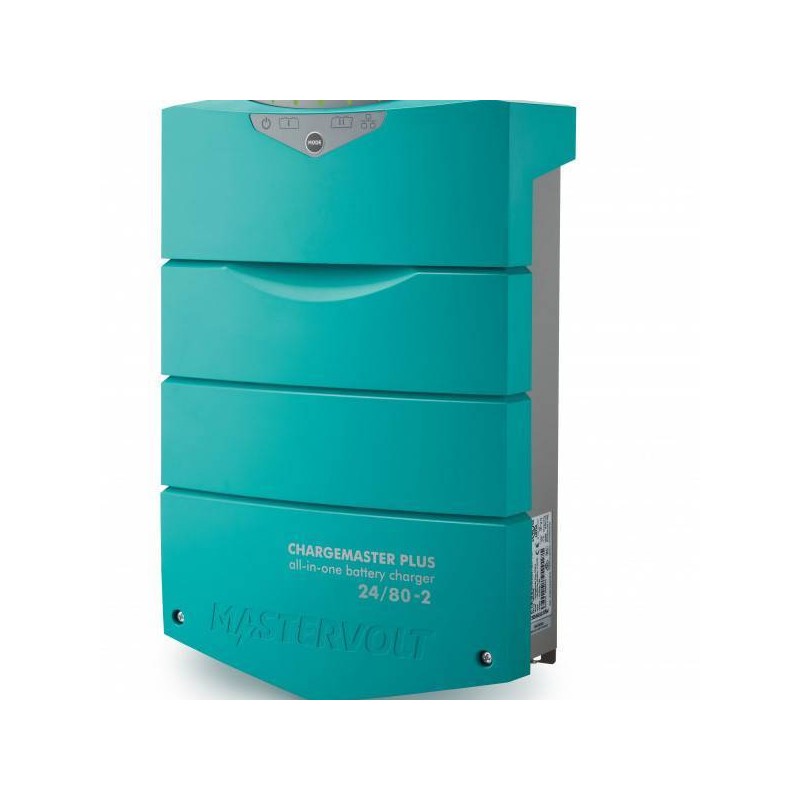

ChargeMaster Plus is an all-in-one solution for faster and safer battery charging. It represents the latest generation of battery chargers, integrating multiple functions into a single device. By replacing auxiliary chargers, ChargeMaster Plus reduces installation complexity and cost. Designed to be versatile, it can safely and rapidly charge any combination of two or three batteries, anywhere in the world. It is a multi-charger with two outputs, an input/output, DC/DC converter, current limiter, and VSR relay. It can charge Lithium Ion, Gel, or AGM batteries. The 24V models can also charge both large and small battery banks with a single battery charger. It can charge multiple batteries while on the move. Extended specifications include a 20% increase in energy at 14.4V and 80% charging power at 60°C. It ensures safe charging with rapid state-of-charge recognition to improve battery lifespan. It has a wide operating range of 80-275V AC, 35-70Hz. Compact, easy to connect, and quick to install. Its technical specifications are as follows: 24V output voltage, total charging current of 80A, maximum number of battery outputs of 2, battery capacity range of 320-800Ah, nominal input voltage of 120/230V (80-275V) 50/60Hz, IP23 protection rating, dimensions (HxWxD) of 384 x 250 x 127mm, weight of 6.3kg, communication interfaces: MasterBus, CZone, NMEA.
