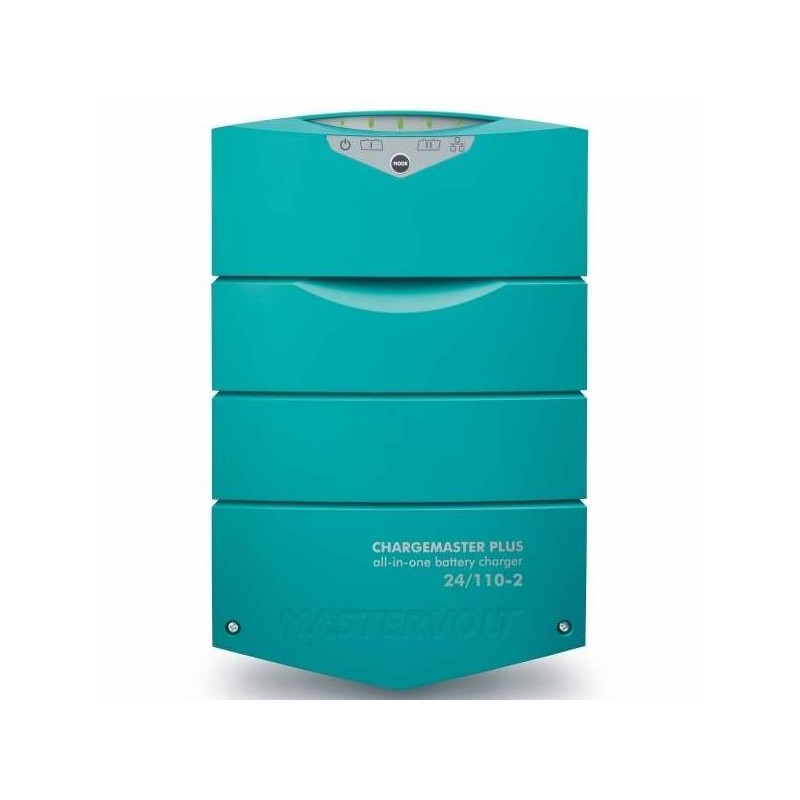

All-in-one solution for faster and safer charging. ChargeMaster Plus is the latest generation of battery chargers, integrating multiple functions into a single device. By replacing auxiliary chargers, ChargeMaster Plus reduces installation complexity and cost. Designed to be versatile, it safely and quickly charges any combination of two or three batteries worldwide. Multi-charger with two outputs, one input/output, DC/DC converter, current limiter, and VSR relay. Charges Lithium Ion, Gel, or AGM batteries, and 24V models can charge large or small battery banks with a single battery charger. Charge multiple batteries while on the move. Extended specifications: provides 20% more energy at 14.4V and 80% charging power at 60°C. Safe charging: quickly recognizes the state of charge to improve battery life. Very wide operating range of 80-275V AC, 35-70Hz. Compact, easy to connect, and quick to install. Output voltage: 24V - Total charging current: 110A - Number of battery outputs: 2 max. Battery capacity range: 400 - 1000Ah - Nominal input voltage: 120/230V (80-275V) 50/60Hz. Protection rating: IP23 - Dimensions HxWxD: 384 x 250 x 127mm - Weight: 6.3kg - Communication interfaces: MasterBus, CZone, NMEA.
