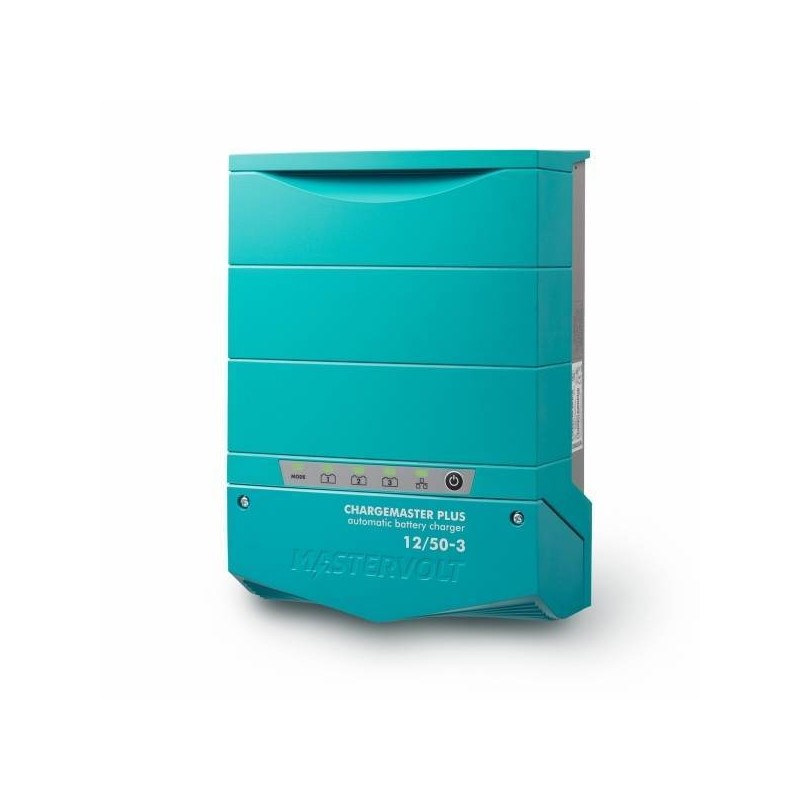

The ChargeMaster Plus is an "all-in-one" solution for faster and safer charging. It represents the latest generation of battery chargers, integrating multiple functions into a single device. By replacing auxiliary chargers, the ChargeMaster Plus reduces installation complexity and cost. Designed to be versatile, it charges any combination of two or three batteries safely and quickly, worldwide. It's a multi-charger with two outputs, one input/output, DC/DC converter, current limiter, and VSR relay. It can charge Lithium Ion, Gel, or AGM batteries, and the 24V models can charge both large and small battery banks with a single battery charger. It can charge multiple batteries while on the go. Extended specifications: Offers 20% more energy at 14.4V and 80% charging power at 60°C. Safe charging: Rapid recognition of charge status to improve battery life. Wide operating range of 80-275 V AC, 35-70 Hz. Compact, easy to connect, and quick to install.Output Voltage: 12 V - Total charge current: 35 A at 14.4 V - Number of battery outputs: 3 max. - Battery capacity range: 140 - 350 Ah - Rated input voltage: 120/230 V (80-275 V) 50/60 Hz - Protection rating: IP23 - Dimensions HxWxD: 291 x 210 x 105 mm - Weight: 2.5 kg - Communication Interfaces: MasterBus, CZone, NMEA - Charger status display (alarm contact): Yes, with Multifunction Relay ref. 77030500.
