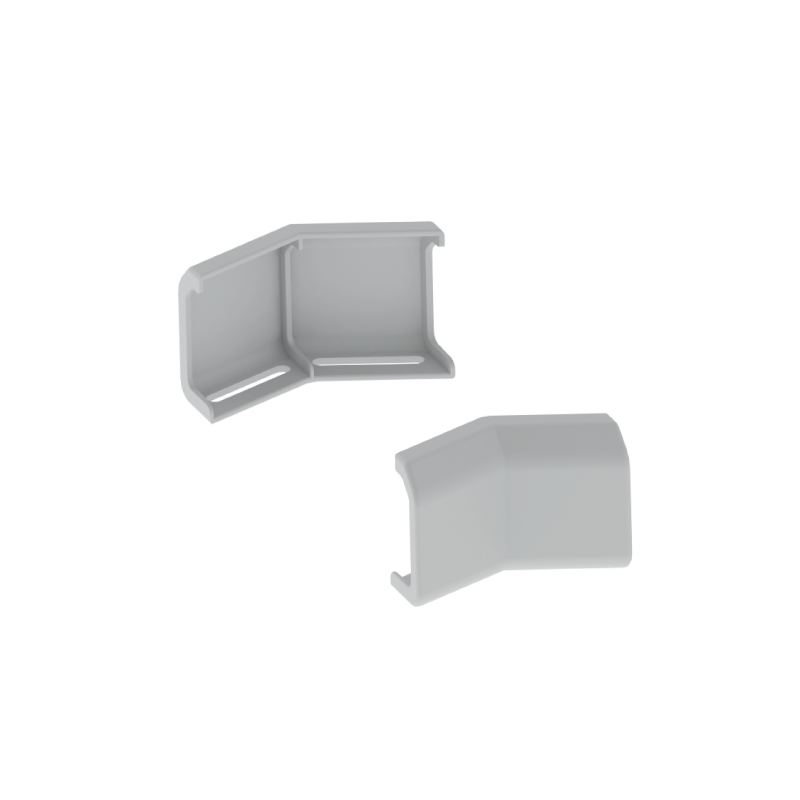

Flat angle couplers, grey RAL7038 in U48X without halogens. Used to create a 45° change of direction with a cable tray with a 100 mm flange height. The reference includes both pieces. Made from insulating material. Quick and secure installation. Same installation process as regular couplers. The same reference can be used for both left and right-hand direction changes. Use 4 screws Ref. 66839-A2 / 66839-A4 (possibility of using the combination 66829-A2 / 66829-A4+66819 as a replacement for the screws 66839-A2 / 66839-A4 in cases where insulation protection for the screw head is required).
