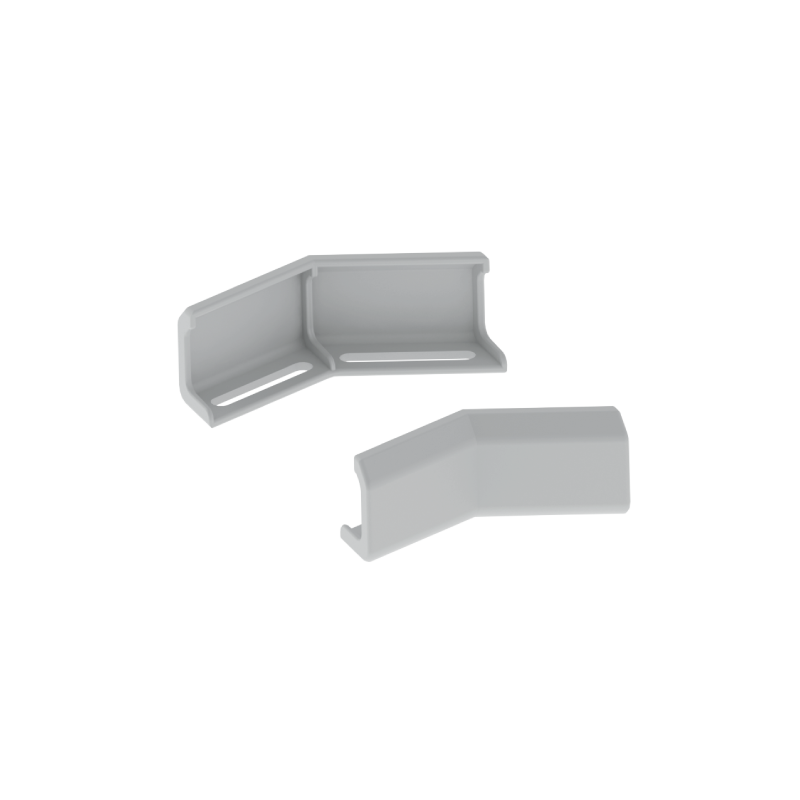

Flat angle coupler grey RAL7038 60 U48X

Flat angle coupler grey RAL7038 60 U48X

02021-SUP-66841-48

Flat angle couplers, grey RAL7038 in U48X without halogens. Used for creating a 45° change of direction with a cable tray with a 100 mm flange height. The reference includes both pieces. Made from insulating material. Ensures safety and quick installation. Follows the same installation process as regular couplers. The same reference can be used for both right and left-hand direction changes. Use 4 screws Ref. 66839-A2 / 66839-A4 (the possibility of using the combination 66829-A2 / 66829-A4+66819 as a replacement for screws 66839-A2 / 66839-A4 in cases where insulating protection of the screw head is necessary).
