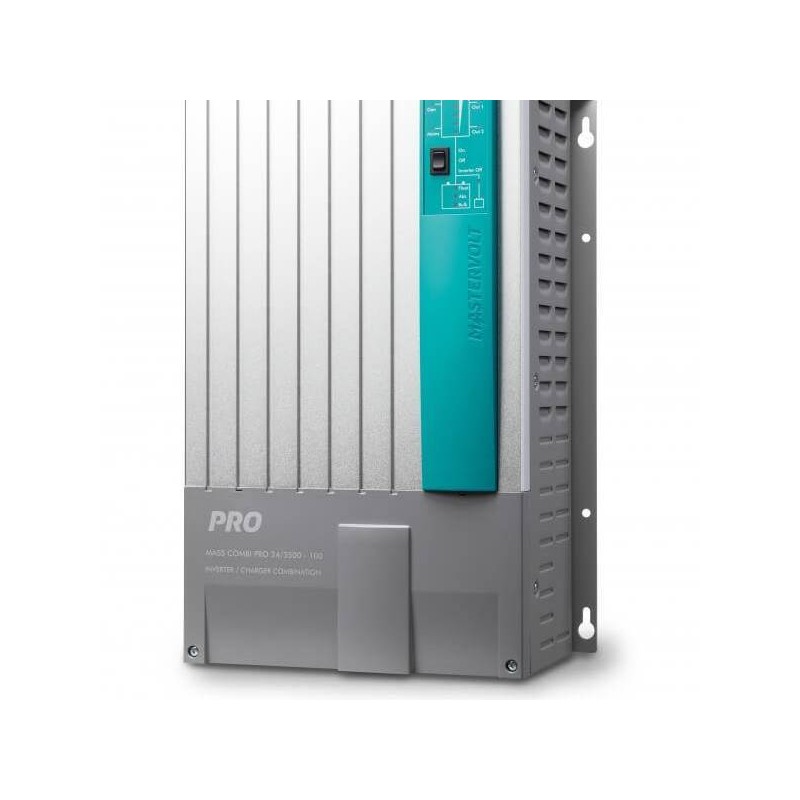

This new combined inverter/charger integrates an intelligent switching system into a robust and high-quality device that is very easy to install. All components are easily connected via MasterBus, and the installation can be intuitively controlled and managed, even with just an EasyView 5 touchscreen display. This allows for managing all information regarding the Combi, batteries, and other sources such as the generator, grid, or solar panels. The system also adapts to Digital Switching, Mastervolt's decentralized switching system. Nominal DC voltage: 24 V - Output voltage: 180-260 V, adjustable - Continuous power at 40°C: 3,500 W - Maximum charge current at 40°C: 100 A - IP rating: IP23 - Pure sine wave voltage conversion 230 V/50 Hz - 2 AC inputs - Parallel operation function (up to 10 devices) and three-phase (3x3) - Dimensions: 472 x 318 x 178 mm - Weight: 15.3 kg - Supplied with battery temperature sensor.
